Raimondi Bulldog Advanced Bullnose Machine
Raimondi Bulldog Advanced Bullnose Machine – Portable Tile Edge Profiler (1.5 HP)
Bring factory-quality edge profiling to the jobsite with the Raimondi Bulldog Advanced Bullnose Machine 1.5 HP, portable, and built for flawless results.
Features & Benefits
-
On-site edge profiling: Bullnose, half-bullnose, 45° bevel (Jolly), or flat-edge shaping
-
Handles thick materials: Up to 30 mm (1-3/16") tile thickness
-
Powerful motor: 1.5 HP, belt-driven, 3,360 RPM (wheel speed: 5,370 RPM)
-
Wide profiling range: Up to 80 cm (31.5") tile length
-
Water-cooled system: Integrated 3-gallon (11.4 L) tank with pump keeps wheels cool
-

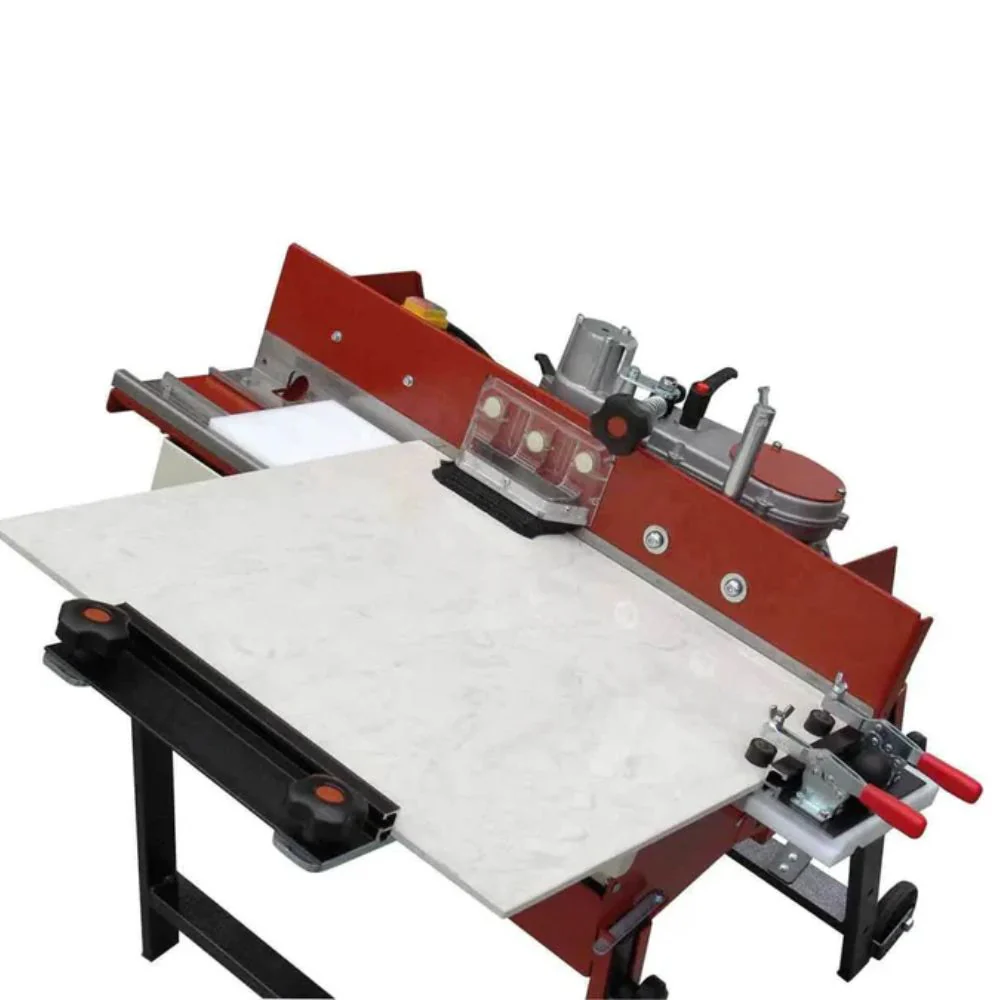

Sliding table platform: Accommodates tiles up to 60 cm (23-5/8") wide
-

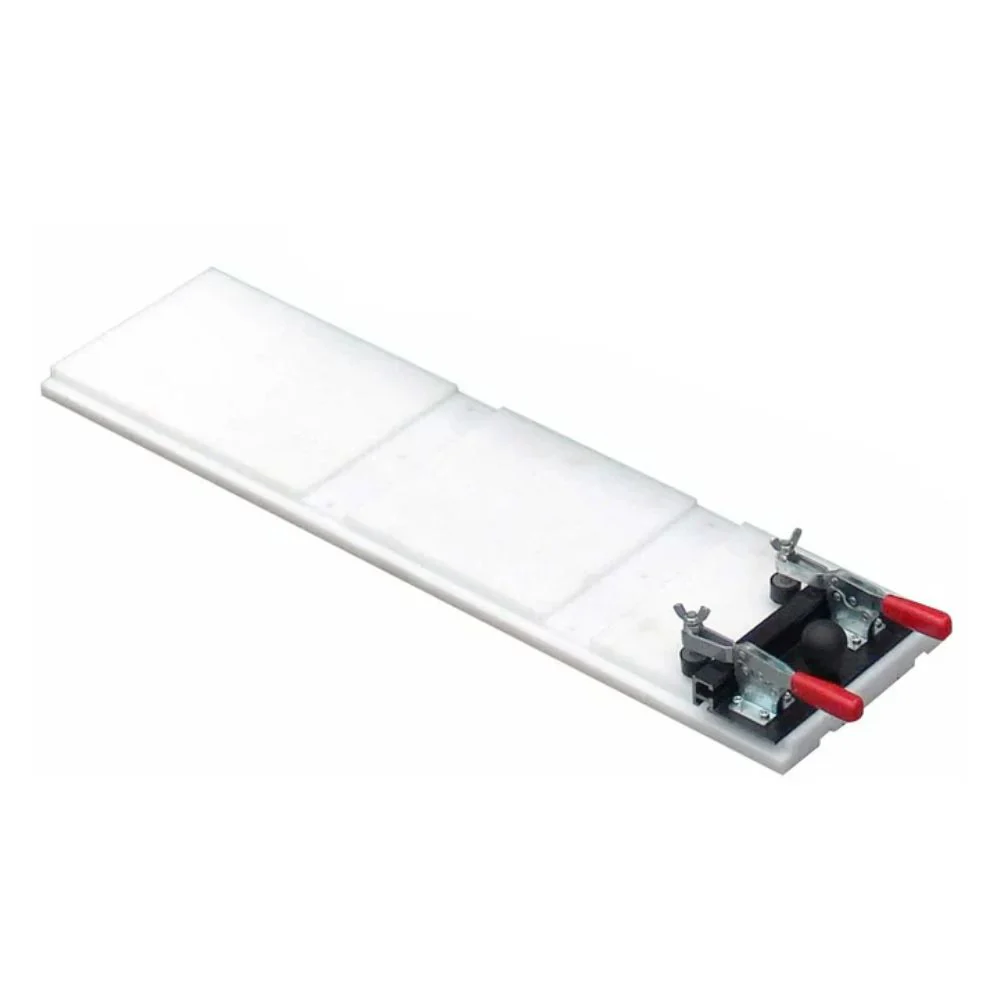

Secure grip: Built-in clamp and pressure wheel ensure no movement during shaping
-

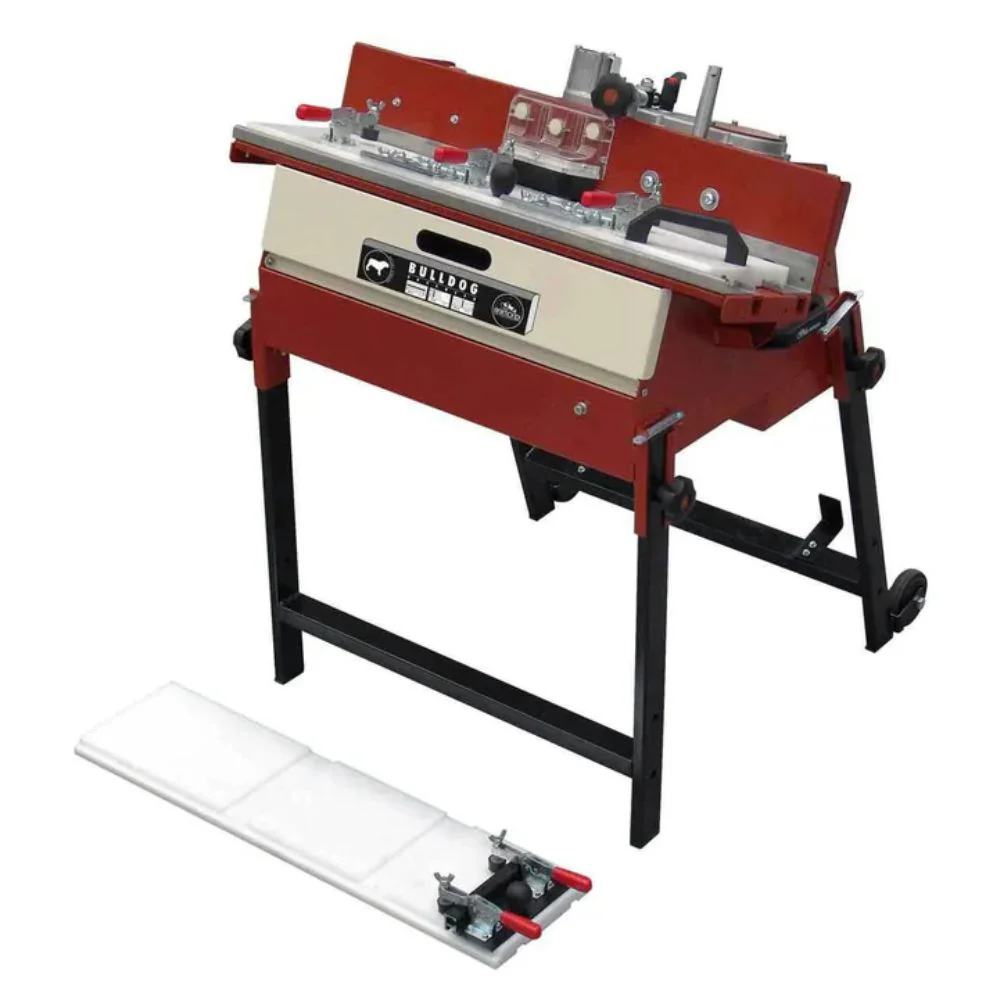

Portable jobsite build: Weighs 165 lbs (75 kg) with wheels and telescoping legs
-
Magnetic splash guard: Keeps debris and water safely contained
-

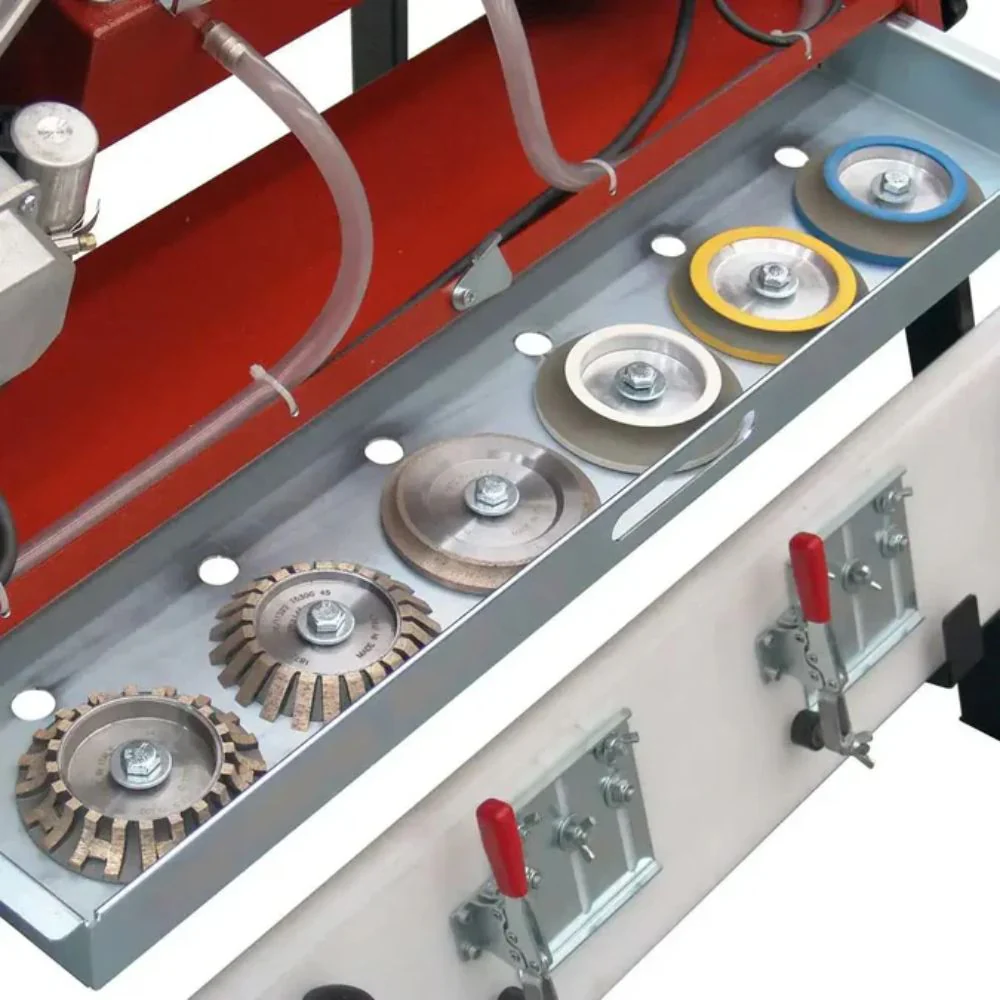

Versatile arbor system: Adjustable positioning with 20 mm arbor diameter
| Spec | Bulldog Advanced |
|---|---|
| Power | 1.5 HP, 110 V |
| Motor RPM | 3,360 (Wheel: 5,370) |
| Max Profiling Length | 31.5" (80 cm) |
| Max Thickness | 1-3/16" (30 mm) |
| Arbor Diameter | 20 mm |
| Weight | 165 lb |
| Water Pump | Heavy‑duty, built‑in 3 gal tank |
