Raimondi Bi-Bulldog Advanced Bullnose Machine

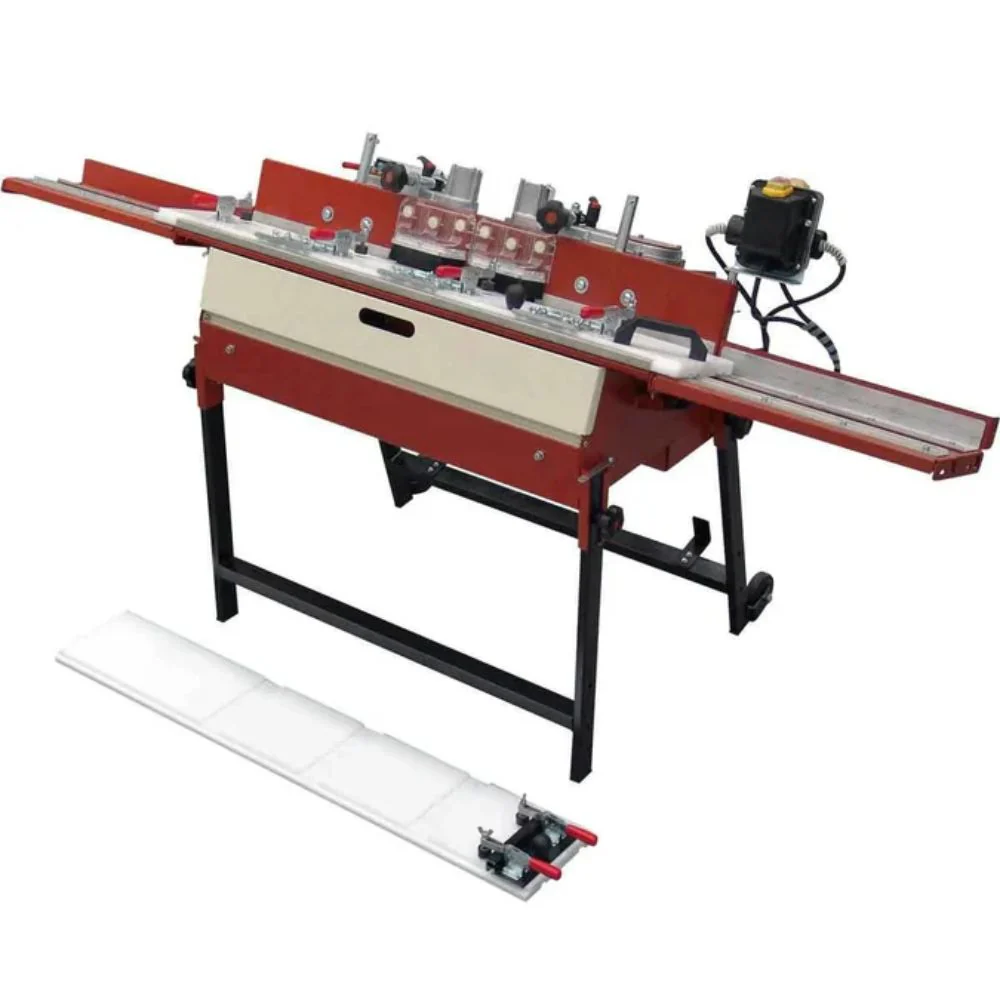

Raimondi Dual‑Head Bulldog Advanced Bullnose Machine
Double the motors, double the productivity — the Raimondi Dual‑Head Bulldog Advanced delivers dual-driven precision for bullnose and 45° bevel profiling on porcelain and stone up to 1-3/16″ thick.
Features & Benefits
-

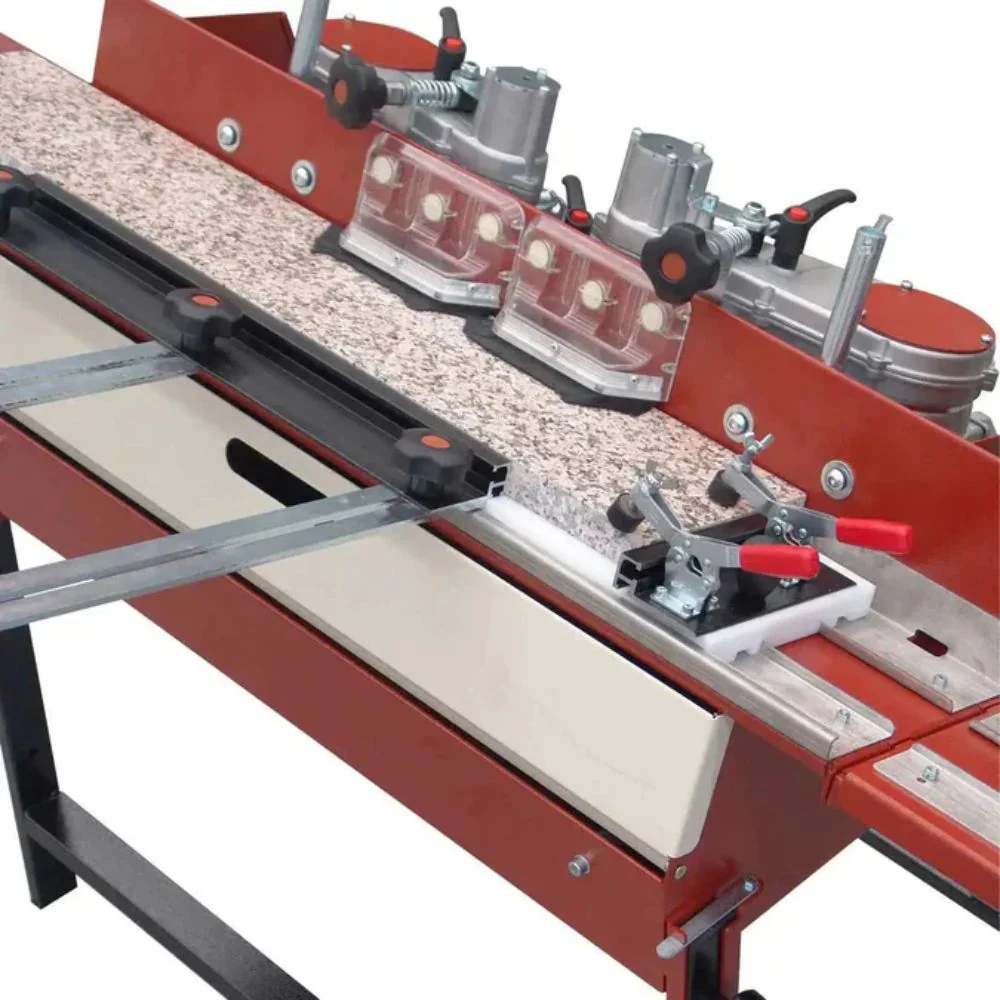

Dual-Motor Bullnose & Bevel Profiling
Two belt-driven 1.5 HP motors allow simultaneous shaping and polishing in one pass. -
47″ Sliding Table
Supports large-format material up to 120 cm with consistent results. -
1-3/16″ Maximum Thickness Profiling
Handle thick porcelain, marble, granite, and engineered stone with ease. -
Adjustable Wheel Range
Accepts 4.5″–6.25″ wheels in 3/8″ and 5/8″ radius — customize for finish depth. -
Built-in Mobility
Telescopic legs with wheels make transport and setup fast and simple. -
Factory Quality Edges without Measuring
Eliminate tile gauging—dual wheels ensure even, consistent bullnose or bevel inserts. -
Mobile Precision Edge Finishing
On-site finishing saves time and material costs compared to factory profiling.
| Spec | Details |
|---|---|
| Power Configuration | 2 × 1.5 HP belt‑driven motors (requires 2 × 20 A circuits) |
| Voltage | 120 V |
| Sliding Table Length | 47‑1/4″ (120 cm) |
| Max Profiling Depth | 1‑3/16″ (30 mm) |
| RPM (Motor/Wheel) | 3,360 / 5,370 |
| Wheel Size | 4‑1/2″–6‑1/4″ (radius wheels available) |
| Arbor Diameter | 20 mm |
| Weight | 243 lb |
| Dimensions (L×W×H) | 44″ × 31″ × 27″ |
FAQs
-
Q: What materials can the Bulldog Dual-Head profile?
A: Porcelain, marble, granite, and engineered stone up to 1-3/16″ thick. -
Q: Do I need two circuits for this machine?
A: Yes, the dual motors each require a dedicated 20-amp 120V circuit. -
Q: Can I change the profiling wheel sizes?
A: Yes, it supports wheels in both 3/8" and 5/8" radius options.
