Imer Mortarman 750 MBP (Mini Batch Plant)

Imer Mortarman 750 MBP (Mini Batch Plant)

Revolutionize Your Precast Production with Mortarman 750 Mixer

Elevate your precast production with the Mortarman 750 Mortar Mixer – a robust, versatile mixer that doubles as a mini batch plant, ideal for a wide range of materials.

Features

    • High Capacity Mixing: Mixes 1600 lbs of mortar, dry pack, stucco, or sand & cement.
    • Concrete Compatible: Capable of mixing concrete with a max aggregate size of 3/8".
    • Powerful Motor Options: Available in 5 hp 220V single phase or 7.5 hp 3 phase 220V.

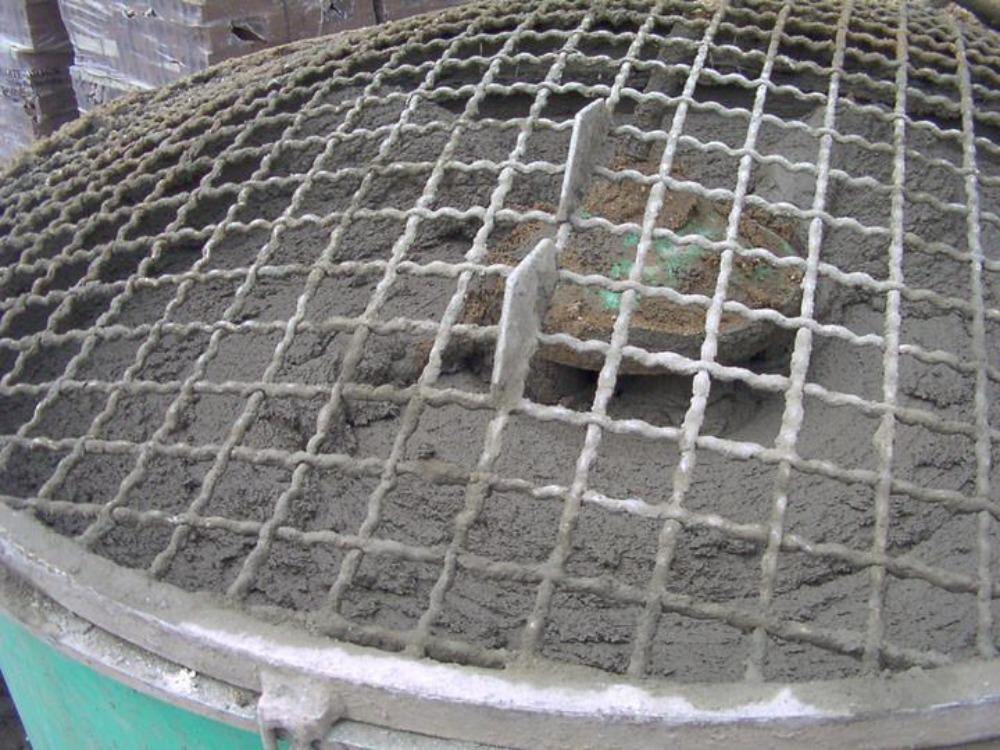

    • Safety-Enhanced Design: Features a one-piece hinged grate with auto shutoff.
    • Towing Safety and Efficiency: Low and wide design for safe and speedy transportation.
    • Versatile Material Compatibility: Can mix materials ranging from dry to wet.
    • Optimal Discharge Height: Discharge outlet height is 30 inches.
    • Substantial Drum Size: Drum diameter measures 52 inches.
    • Maintenance-Free Bearings: Sealed shaft bearings that never need maintenance.
    • Flexible Power Options: Gas motor 13 HP Honda with electric start, plus electric motor options.
    • Adjustable Support Legs: Four corner support legs for quick and easy setup.



 Imer Mix 750 Batch Plant Specifications
Drum capacity 27 cubic feet
Batch output 17 cubic feet  (est 1,700lbs )
Gas motor w/ centrifugal clutch 13 HP Honda w/ electric start
Electric motor  220 Volt 5 HP 1 phase / 7.5 HP 3 phase
Drum diameter 51"
Maximum aggregate size 3/8" minus
Discharge outlet height 30"
Pneumatic tires 22"
Weight  1,700lbs
Dimensions  L x H x W 90" x 62" x 63"
Shipping Pallet Dimensions L x H x W 86" x 64" x 64"

Select Choose a motor version
From $4,724.65

Original: $13,499.00

-65%
Imer Mortarman 750 MBP (Mini Batch Plant)

$13,499.00

$4,724.65

Product Information

Shipping & Returns

Description

Revolutionize Your Precast Production with Mortarman 750 Mixer

Elevate your precast production with the Mortarman 750 Mortar Mixer – a robust, versatile mixer that doubles as a mini batch plant, ideal for a wide range of materials.

Features

    • High Capacity Mixing: Mixes 1600 lbs of mortar, dry pack, stucco, or sand & cement.
    • Concrete Compatible: Capable of mixing concrete with a max aggregate size of 3/8".
    • Powerful Motor Options: Available in 5 hp 220V single phase or 7.5 hp 3 phase 220V.
    • Safety-Enhanced Design: Features a one-piece hinged grate with auto shutoff.
    • Towing Safety and Efficiency: Low and wide design for safe and speedy transportation.
    • Versatile Material Compatibility: Can mix materials ranging from dry to wet.
    • Optimal Discharge Height: Discharge outlet height is 30 inches.
    • Substantial Drum Size: Drum diameter measures 52 inches.
    • Maintenance-Free Bearings: Sealed shaft bearings that never need maintenance.
    • Flexible Power Options: Gas motor 13 HP Honda with electric start, plus electric motor options.
    • Adjustable Support Legs: Four corner support legs for quick and easy setup.



 Imer Mix 750 Batch Plant Specifications
Drum capacity 27 cubic feet
Batch output 17 cubic feet  (est 1,700lbs )
Gas motor w/ centrifugal clutch 13 HP Honda w/ electric start
Electric motor  220 Volt 5 HP 1 phase / 7.5 HP 3 phase
Drum diameter 51"
Maximum aggregate size 3/8" minus
Discharge outlet height 30"
Pneumatic tires 22"
Weight  1,700lbs
Dimensions  L x H x W 90" x 62" x 63"
Shipping Pallet Dimensions L x H x W 86" x 64" x 64"
