Revolutionize Your Mixing with the Imer Mix 120 Plus

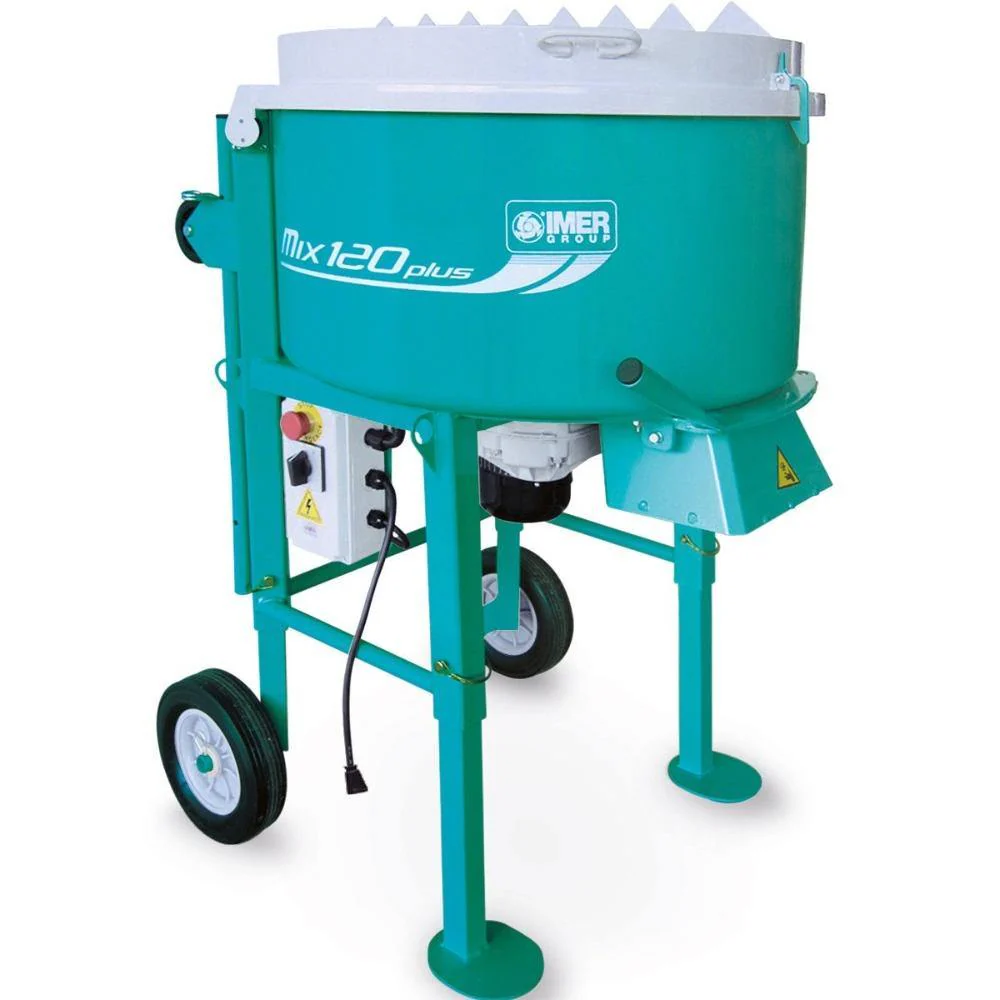

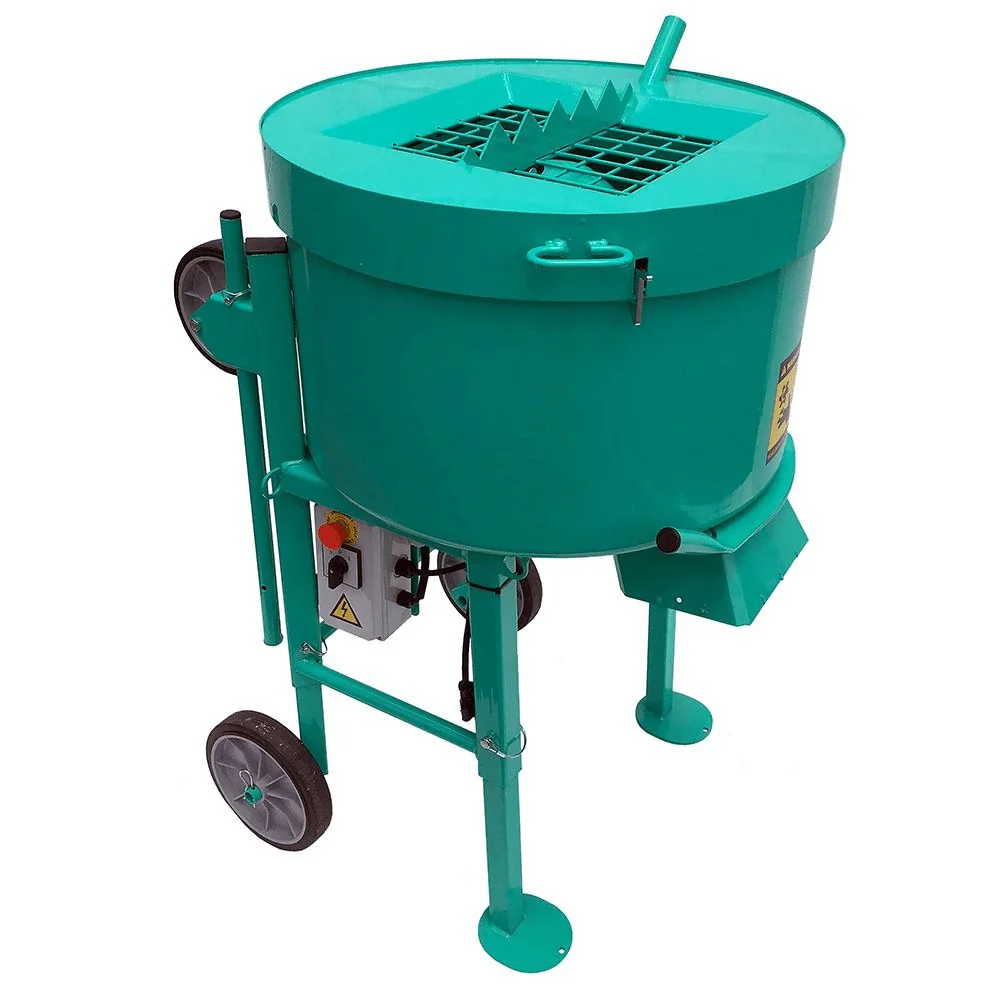

Introducing the Imer Mix 120 Plus Portable Mortar Mixer, a versatile and powerful tool equipped with either the innovative iDust Grate or the Standard Grate, designed for efficient, clean, and safe mixing solutions.

Features

Powerful Motor: Operates on a 2 hp, 15 amp / 110v system.

iDust Grate Feature: Ensures cleaner and safer operation.

Dual-Direction Mixing: Gear-driven paddles with forward/reverse functions.

Large Capacity: Can mix 3 cubic feet of material per batch.

Adjustable Discharge Height: Versatile for various site requirements.

Easy Site Access: Fits through 32" doors, enhancing mobility.

Transport-Friendly Design: Features a 4-wheel laydown design.

Enhanced Safety: Heavy-duty grate with bag splitter and interlock.

Controlled Discharge: Flexible options for material dispensing.

A note about operating in cold air temperatures: If you are using your mixer in air temperatures below 40 degrees the high grade oil in the gearbox will thicken and slow the mixer or it may not start. In these conditions, warm up the mixer, especially the gearbox and it will run normally. Also, be sure to use 10 gauge electrical cord no longer than 50ft.



Imer Mix 120 Plus Portable Mixer Specifications

Drum capacity	4.5 Cubic feet
Batch output	3.0 Cubic feet
Drum diameter	30 Inches
Maximum aggregate size	3/8 inch
Paddle speed	38 rpm
Electric  motor power rate 110V/60Hz	2 HP
Electric current draw	15 amps
Noise level in operator position	70 dB(A)
Weight	286 lbs
Dimensions L/H/W	33" /50"/ 30"
