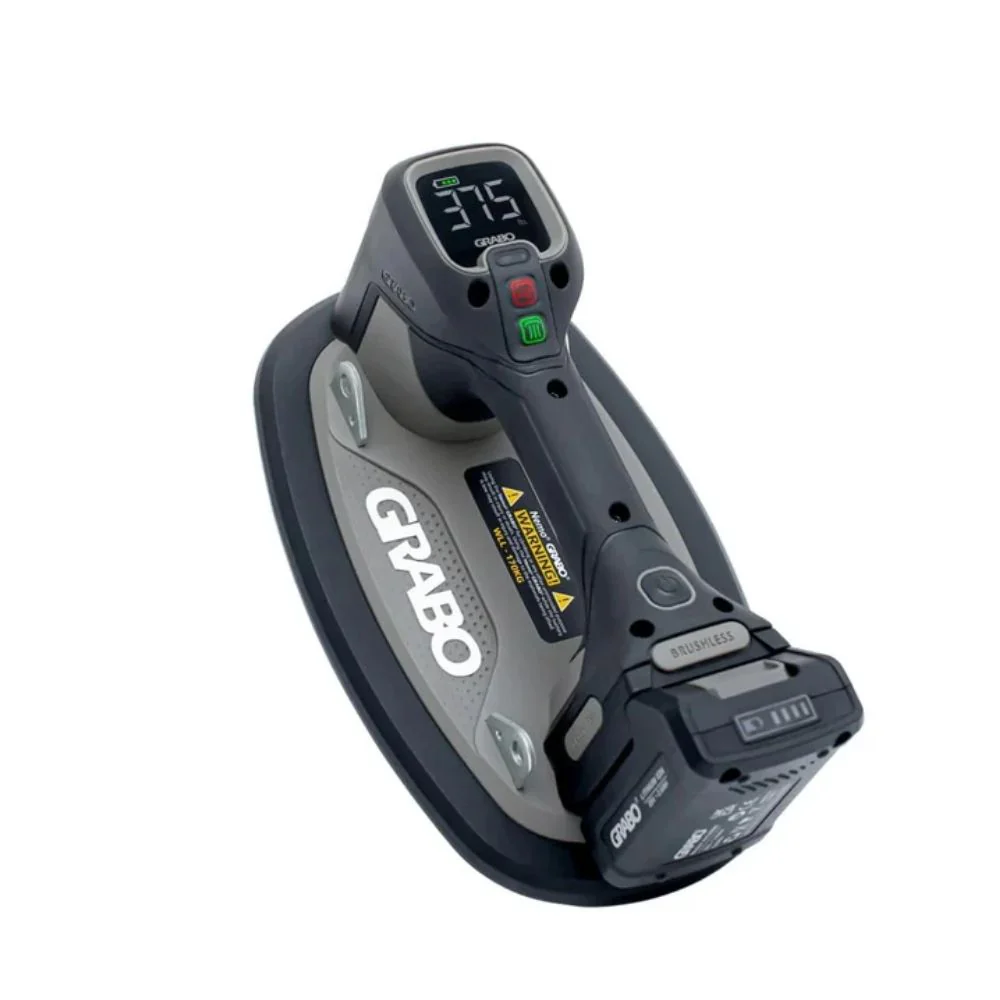

GRABO PRO Brushless Vacuum Lifter

The GRABO PRO Brushless is GRABO’s most advanced vacuum lifter, built for professional tile contractors who handle large-format tile, gauged porcelain panels, stone, glass, metal, and other difficult materials on the jobsite. With a high-torque brushless motor, adjustable vacuum control, real-time LED display, and integrated wireless remote, it gives installers more control when lifting both heavy materials and delicate surfaces.

Features

• Brushless motor technology: High-torque brushless pump moves 30 L/min of air for quicker grabs, faster resets, and longer runtime.
• Built for pro tile handling: Ideal for large-format tile, polished porcelain, gauged panels, stone slabs, glass, metal, and other smooth or semi-porous materials.
• Adjustable vacuum control: Set the target pressure you need for the material being lifted.
• LED display: Monitor vacuum pressure in real time and make adjustments on the fly.
• Integrated wireless remote: Control the tool from up to 98 ft (30 m) away.

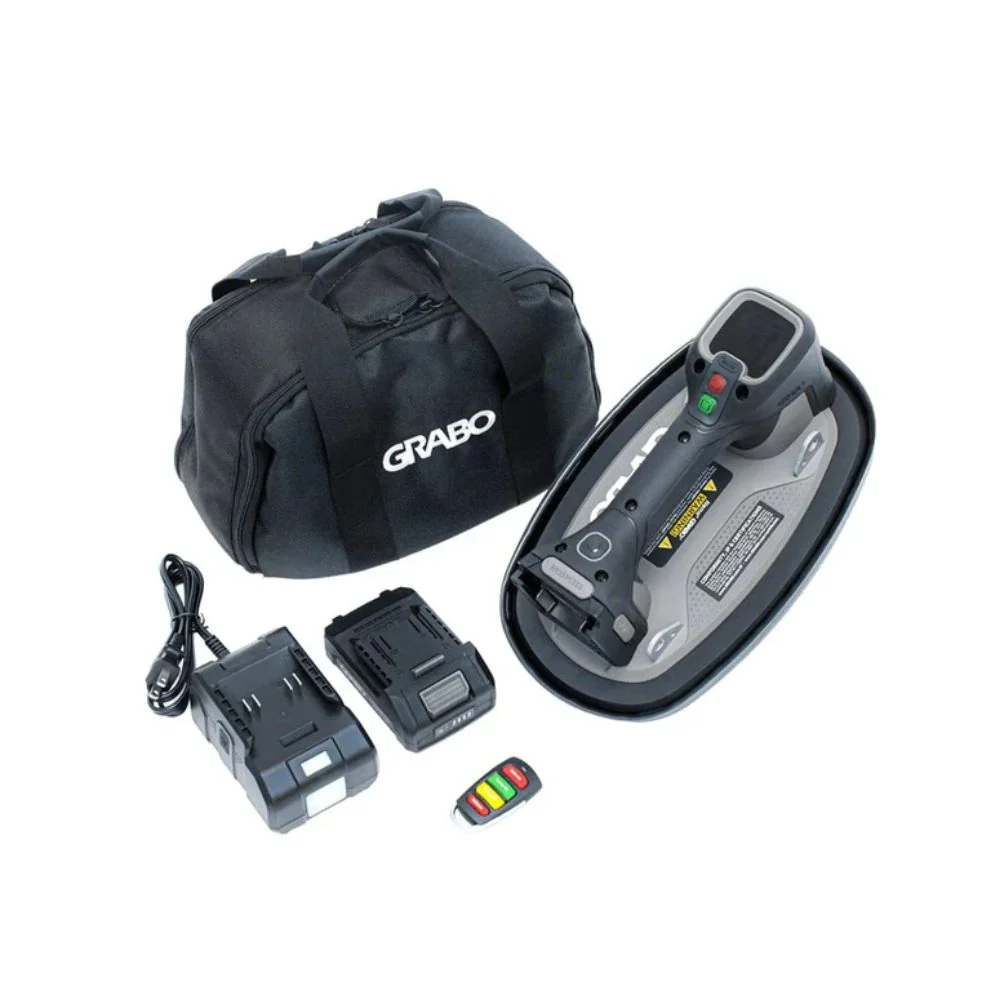

• 20V battery platform: Runs on the GRABO 20V battery system and includes a 2.6Ah Li-ion battery.
• Long service life: Designed for 100,000+ ON-OFF cycles or 800+ hours continuous pump service life.
• Balanced ergonomic handle: Built for better comfort during repeated lifting and placement.
• Automatic vacuum maintenance: The pump automatically maintains vacuum while moving and placing the load.

Why Tile Contractors Choose the GRABO PRO Brushless

• Better control for fragile surfaces: Adjustable suction helps reduce over-suction on thin glass, polished stone, and delicate tile.
• Strong lifting performance: Designed for both vertical and horizontal handling across multiple material types.
• Faster workflow on large tile jobs: Makes it easier to carry, position, and set oversized tile and panels.
• Works on more than just tile: Useful for glass, metal, plastic, wood, drywall, rough slate, and rough concrete within rated limits.

Best Use / Compatibility

• Best for: Professional tile contractors, stone fabricators, glass installers, and remodelers
• Ideal materials: Ceramic tile, porcelain tile, glass, stone, metal, plastic, wood, drywall, rough slate, and rough concrete within rated lift limits
• Applicable surface type: Non-porous and semi-porous materials with peak/valley height under 0.1 in (3 mm) and arc less than 5 degrees
• Important: Maximum lift and working load limit are not the same. Follow the published working load limits for the material being handled.

Lifting Capacity

Material	Perpendicular Hold	Parallel Hold
Glass	265 lbs (120 kg)	265 lbs (120 kg)
Ceramic Tile	265 lbs (120 kg)	265 lbs (120 kg)
Metal	242 lbs (110 kg)	242 lbs (110 kg)
Plastic	220 lbs (100 kg)	220 lbs (100 kg)
Wood	220 lbs (100 kg)	143 lbs (65 kg)
Rough Slate	176 lbs (80 kg)	176 lbs (80 kg)
Rough Concrete	176 lbs (80 kg)	176 lbs (80 kg)
Drywall	165 lbs (75 kg)	143 lbs (65 kg)

Specifications

GRABO PRO Brushless Specifications
Battery Platform	GRABO 20V 2.6Ah Li-ion, compatible with all GRABO 20V packs
Pump Output	30 L/min high-flow brushless pump
Air Flow	30 L/min
Vacuum Control	Adjustable suction limiter up to 11.6 psi (0.8 bar / 80 kPa)
Maximum Lifting Capacity	375 lbs (170 kg) max lift / 265 lbs (120 kg) WLL
Charger Input Voltage	100-240 VAC, 50/60 Hz
Battery Charging Time	Around 2 hours
Non-Stop Running Time	Up to 1.5 hours
Running Cycles on Full Charge	About 900 ON-OFF cycles of 10 seconds
Stand-By Mode	Up to 30 days
Pump Service Life	100000+ ON-OFF cycles / 800+ hrs continuous
Dimensions (L x W x H)	12.2 x 7.5 x 5.9 in (310 x 191 x 149 mm)
Net Weight with Battery	4.4 lbs (2 kg)
Working Temperature	32°F - 140°F (0°C - 60°C)
Applicable Surface Type	Non-porous and semi-porous materials with peak/valley height under 0.1 in (3 mm), arc less than 5 degrees
Additional Features	LED display with adjustable suction limiter and integrated wireless remote
